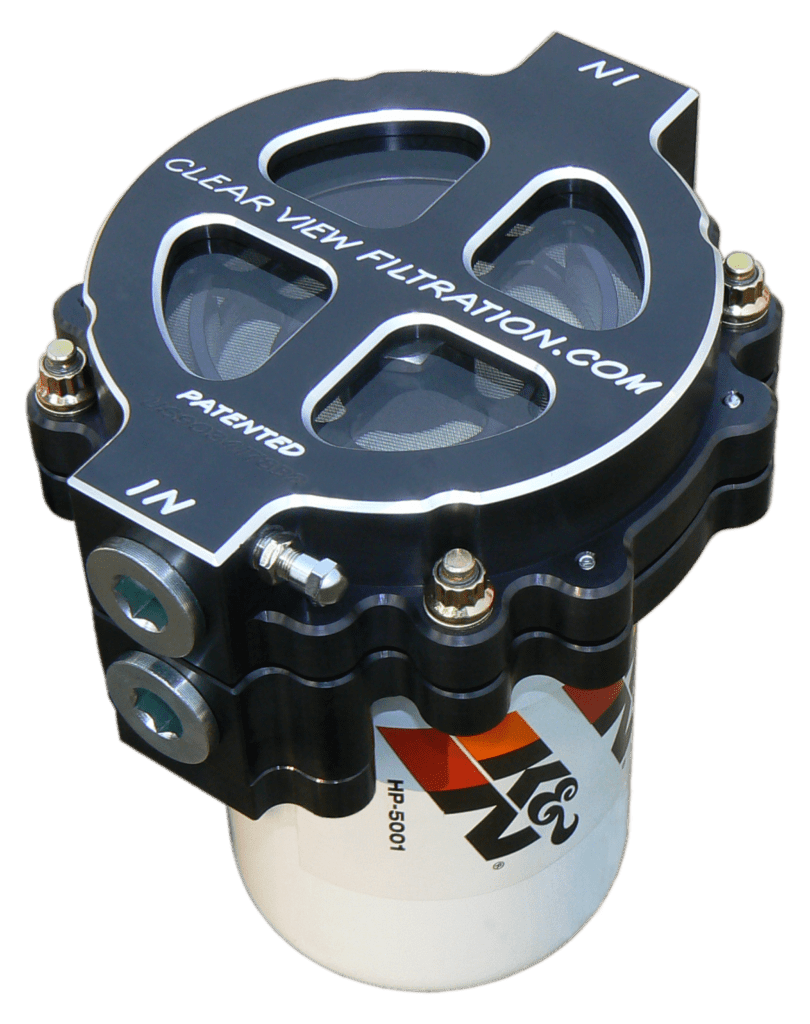

Clearview 6″ Screw-On Oil Filter 115-micron BC125-115-B

6″ Screw-On See Through Filter Assembly can be used for many applications including Racing, Marine, Automotive, Farm, and for Industrial Hydraulic Systems. This Filter Assembly uses a HP-6 size and style disposable filter. Dual Filtration is recommended for motor sports ran on dirt and pushing high volumes of oil. Filter has #12 Ports and uses a 115 Micron Element, for running all weight oils up to 70 weight.

**When Running a System 1 or Other Metal Canister Type Filter ; Part # 125-115 and Part #126-380 are very similar filters except:
P# 125-115 filter has a O-Ring Receiver Groove machined in the bottom which helps prevent the disposable filter seal from blowing out. (Note; when using P#125 only a spin on disposable filter can be used)
P # 126-380 filter has a Flat Sealing Surface on the bottom so a System 1 O-Ring or Other Metal Canister Filters can seal correctly.
(Note; when using P#126 either System 1 or a spin on disposable filters can be used)

Disposable Filter Thread Size:  1-1/2” – 12 TPI

Bypass Relief Valve:  Yes

Inlet & Outlet Fitting:  #12 O-Ring Boss – 1 1/16” – 12 TPI

Operating Temp:  max 220 degrees Fahrenheit

Operating Pressure:  max 150 PSI

Height (without disposable filter):  3.250 in.

Width:  6.750 in.

Length:  7.750 in.

Filter Weight:  6.1 pounds

Recommended Disposable Filter:
(not included) K&N # HP-5001 or

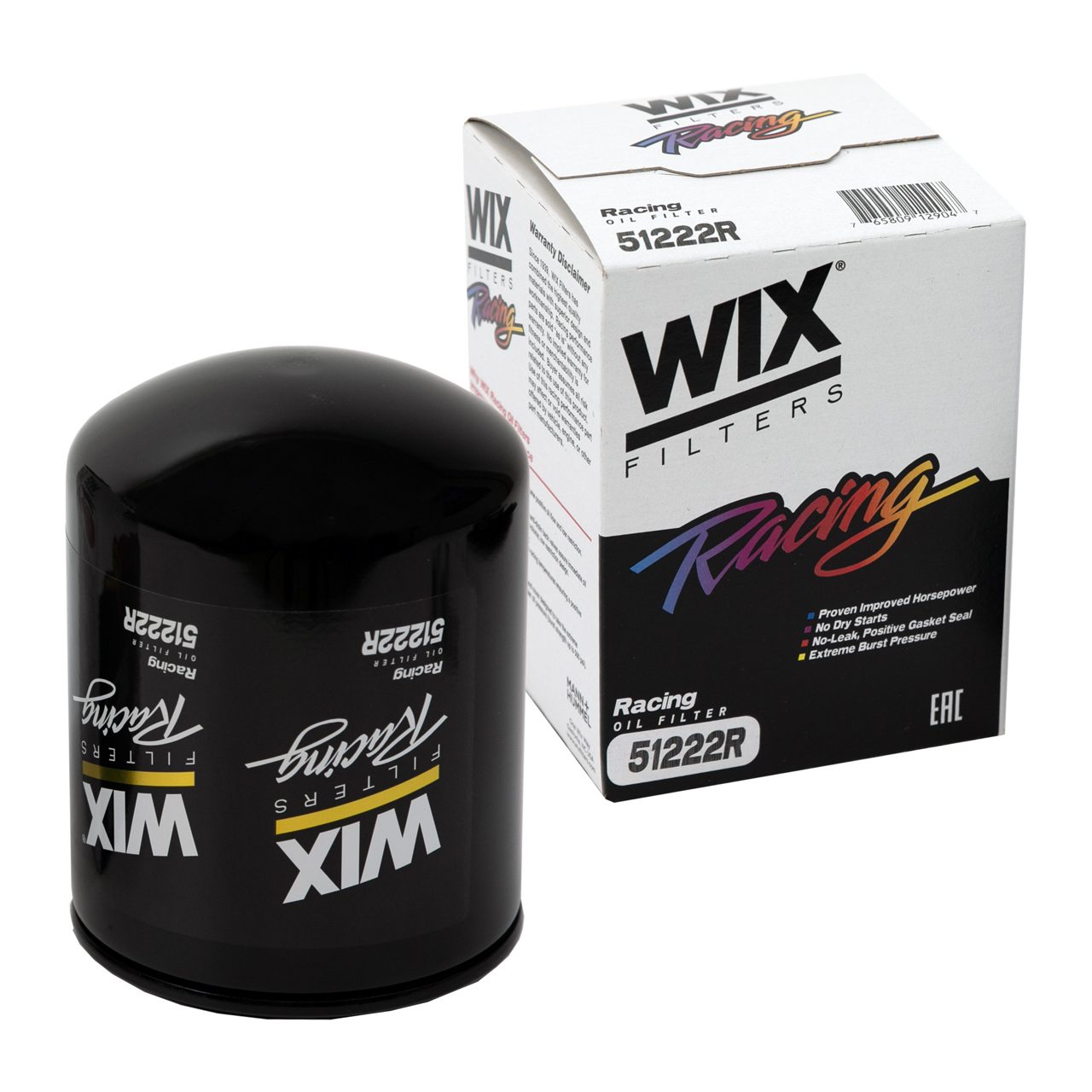

WIX #51222R, or FleetGuard # LF3363
