Main Bearing Size

Standard Undersize 0.001 Undersize 0.010

Decrease quantity Increase quantity

Add to cart





MAHLE / CLEVITE MS2199H Specifications
Bearing Material	TM-77
Bearing O.D. or Housing Bore (max.)	2.7514 IN, 2.7514 IN
Bearing O.D. or Housing Bore (min.)	2.7509 IN, 2.7509 IN
Bearing Series	H
Max. Wall	0.0957 IN, 0.0957 IN
Standard Shaft Diameter (max.)	2.5593 IN, 2.5593 IN
Standard Shaft Diameter (min.)	2.5588 IN, 2.5588 IN
Vertical Oil Clearance (max.)	0.0026 IN, 0.0026 IN
Vertical Oil Clearance (min.)	0.0005 IN, 0.0005 IN

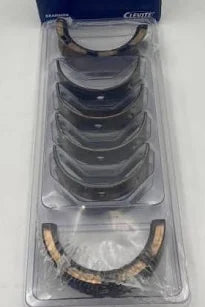

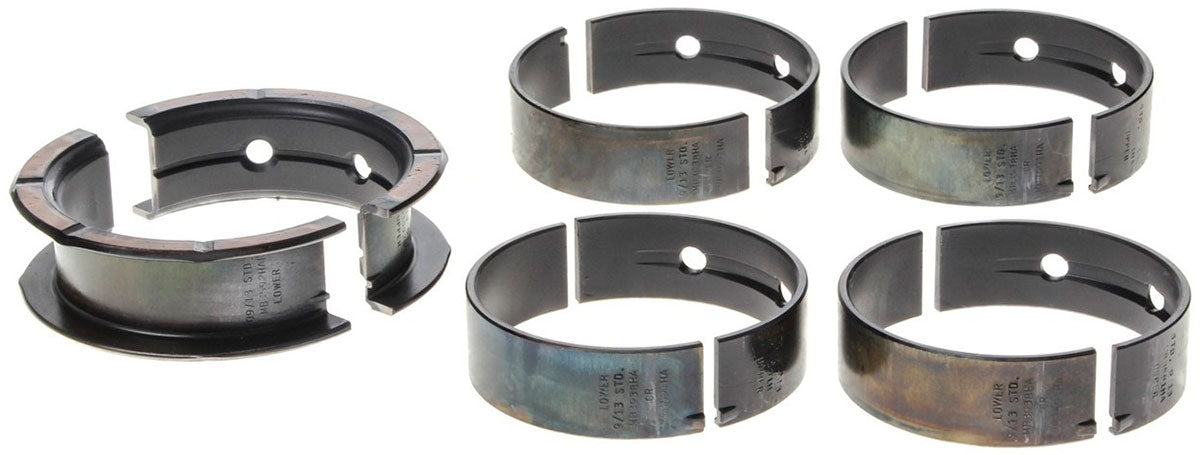

High Performance; H Series (Tri-Metal); Set

Features & Benefits: Seizure Resistance - CLEVITE tri-metal engine bearings have as much as 40% better seizure resistance than competitors' engine bearings Load Capacity - CLEVITE tri-metal engine bearings can withstand over 60% higher loads for extended periods compared to competitors' engine bearings Embedability & Conformability - The overlay on a tri-metal engine bearing offers a superior surface for forgiveness, offering additional protection that can be extremely beneficial in an engine that is poorly maintained Durability - CLEVITE tri-metal engine bearings not only exceed light vehicle OE durability requirements of 150,000 miles, they also exceed heavy vehicle OE durability requirements of 300,000 miles
